This example demonstrates all available line styles in fortplotlib, showing how to customize the appearance of plotted lines.

Files

  • line_styles.f90 - Source code
  • line_styles.png/pdf/txt - Output showing all line styles

Running

make example ARGS="line_styles"

Features Demonstrated

  • Named Constants: Use predefined constants for better code readability
  • String Shortcuts: Compatible with matplotlib-style strings
  • Marker Combinations: Combine with markers for scatter plots
  • Clear Separation: Data offset vertically for visual clarity

Available Line Styles

  • Solid line (- or LINESTYLE_SOLID)
  • Dashed line (-- or LINESTYLE_DASHED)
  • Dotted line (: or LINESTYLE_DOTTED)
  • Dash-dot line (-. or LINESTYLE_DASHDOT)

Output

Line Styles


ASCII output preview:

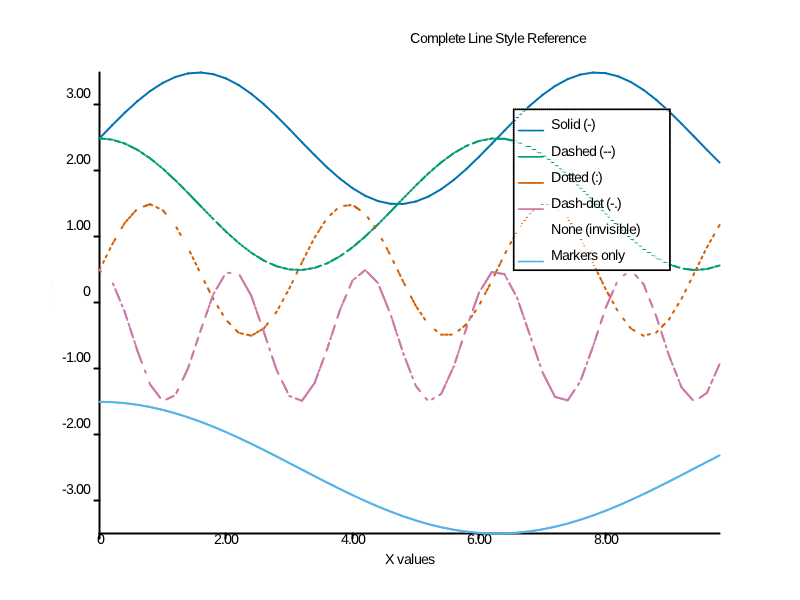

                         Complete Line Style Reference
+--------------------------------------------------------------------------------+
|3.0  ________________                              -- Solid (-)                  |
|                                                                                |
|2.0  ---- ---- ---- ---- ----                     -- Dashed (--)               |
|                                                                                |
|1.0  .... .... .... .... ....                     -- Dotted (:)               |
|                                                                                |
|0.0  _._ _._ _._ _._ _._ _._                        -- Dash-dot (-.)             |
|                                                                                |
|-1.0+--------+----------+----------+----------+----------+--------+            |
     0        2          4          6          8         10                     |
+--------------------------------------------------------------------------------+
                                       x
Line Styles

Full ASCII Output: Download line_styles.txt | ASCII Format Guide
